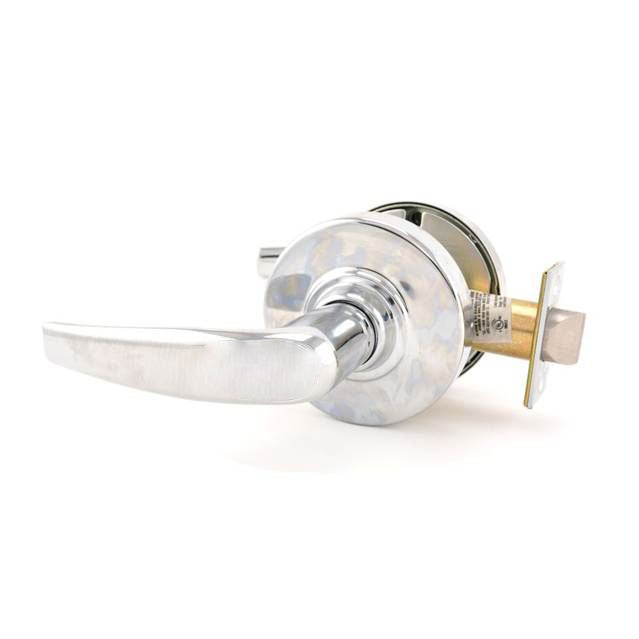

Schlage Commercial ND10ATH625 ND Series Passage Athens with 13-248 Latch 10-025 Strike Bright Chrome Finish.

Product features

• Passage, Both Levers Always Unlocked, Inside Lever is Always Free for Immediate Egress
• ANSI/BHMA Certified A156.2-2011
• 1-5/8" to 2-1/8" Door Range
• Commercial Grade 1
• UL Listed for 3 Hour Fire Door

Product specifications

Manufacturer

Schlage Commercial

Manufacturer number

043156629190

Atlas SKU

ND10ATH625

Category

Cylindrical Locks

Series

ND Series

Function

Passage

Handing

Reversible

BHMA / ANSI grade

ANSI / BHMA Certified A156.2 2011 Series 4000 Grade 1

Finish

Bright Chrome

Material

Zinc Base

Overall dimension

3-7/16" Rose with 4-9/16" Lever and 3-5/16" Projection

Backset

2-3/4" Backset

Strike

ANSI Strike

Crossbore size

2-1/8" Bore with Two 5/16" Post Holes

Projection

3-5/16"

Sell unit

EA

Order quantity

1

Case quantity

6

Country of origin

MX

Manufacturer warranty

Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty

UPC / GTIN

043156629190

Manufacturer

Schlage Commercial official website

Ordering status: Informational. Contact Atlas to confirm the exact configuration, current price, availability, lead time, freight, and order requirements.
